Cas No: 61788-97-4 epoxy resin

Product Name: epoxy resin
Apperance: Yellow or transparent solid or liquid
Cas No: 61788-97-4
MF: (C11H12O3)n
Density: 1.2 g/cm³
Application :Preparation of thermosetting composites or binders

info@mstarlashes.com whatsapp: +86 19050308356 Inquiry

1.Discription of Epoxy Resin:

Product Name: epoxy resin

Apperance: Yellow or transparent solid or liquid

Cas No: 61788-97-4

MF: (C11H12O3)n

Density: 1.2 g/cm³

Application :Preparation of thermosetting composites or binders

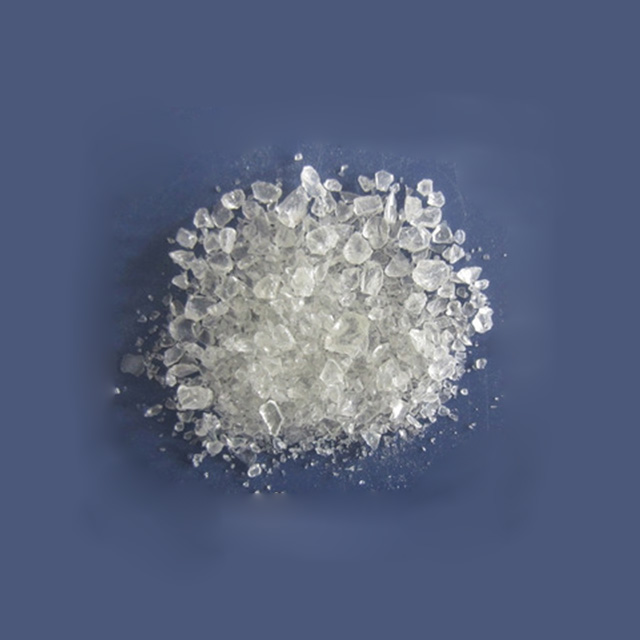

Bisphenol A type solid epoxy resin
It is light yellow with low toxicity,characterized by higher softening point with wide molecule weight distribution. It is of
high-molecule-weight compound of even polymerization degree.The product of such material has stronger impact resistance and flexibility.It is mainly used in coating and painting business.

A type of basic liquid epoxy resin.

It is colorless and light yellow viscous liquid with low toxicity. It is mainly used in coating,adhesive,antisepticising,electric insulation.Laminated plates and potting fields as well as the raw material for high-grade epoxy resin processing.

2.Specification of Epoxy Resin:

Solid Epoxy Resin
Brand	Epoxy equivalent (g/eq)	Hydrolysable chlorine wt% ≤	Softening point (ºC)	Soluble viscosity (25ºC)	Volatile wt%≤	Color (gardner) ≤
SW-011	450~500	0.1	60~70	D~F	0.6	0.5
SW-012	600~700	0.1	75~85	G~K	0.6	0.5
SW-013	700~800	0.15	85~95	L~Q	0.6	0.5
SW-014	900~1000	0.1	91~102	Q~V	0.6	0.5
SW-014U	710~875	0.1	88~96	L~Q	0.6	0.5

Liquid Epoxy Resin
Brand	Epoxy eqiovalent(g/eq)	Hydrolysable chlorine,wt% ≤	Viscosity (mPa•s25°C)	Volatile,wt% ≤	Color(Gardner) ≤	Equivalent to
SW-128	184~194	0.1	11000~14000	0.2	0.1	DER331(DOW);NPEL828

3. Application of Epoxy Resin

Solid Epoxy Resin

1. Used in the field of coatings
Bridge anticorrosive coatings, steel structure anticorrosive coatings, floor coatings, decorative coatings, functional coatings, etc. Pipeline anti-corrosion coating, refrigerator, washing machine outer coating, electrical equipment insulation coating, etc. Automotive coatings, Marine coatings, etc
2. Used in the field of composite materials
Used in automobile parts, factory equipment, aircraft, roads, Bridges and pavements.
3. Used in the field of adhesives
Used for sporting goods, FRP helmets, rackets, golf clubs, fishing rods and so on.
4.Used for insulation materials
Copper clad plate, glass steel plate, tube, rod, transformer, relay, high voltage switch, insulator, transformer, impedance
device, cable end, electronic devices, components sealing or sealing and molding, etc.

Liquid Epoxy Resin

1. Paints :
Electrodeposition coating, Ambient curing coating, Clear coating, Anti-corrosion coating
2. Electrical and Electronic fields :
Casting, Dipping, Encapsulation, Laminates, Condenser and Resistor coating.
3. Civil Construction and Buildings :
Cementing concrete structure, Water proof, Anti-corrosion road pavement, Repair bond for joint, Grouting material.
4. Adhesive :
Metal, Glass, Wood, and Stone adhesives.
5. fiber glass:
Filament winding, Glass fiber reinforcement resin.
